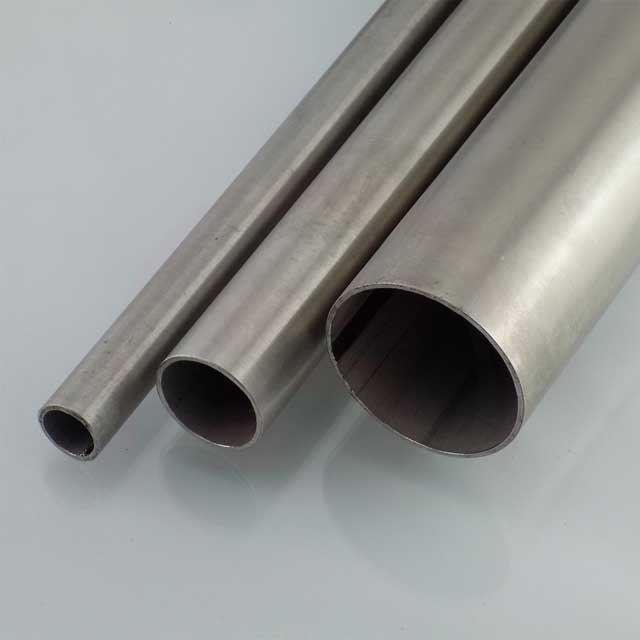

Stainless steel round tube
Stainless steel round tube are corrosion-resistant stainless steel products for demanding visible and functional applications. They are suitable for railings, frames, equipment, brackets and components where clean surfaces and durable material properties matter.
Dimensions, nominal inch sizes and weights per metre
The tables show sizes from our Stahlshop range: nominal pipe size in inches first, followed by outside diameter, wall thickness and theoretical weight per metre. Availability and cutting are confirmed on enquiry.
Typical uses for Stainless steel round tube
Stainless steel round tube are corrosion-resistant stainless steel products for demanding visible and functional applications. They are suitable for railings, frames, equipment, brackets and components where clean surfaces and durable material properties matter.
Technical specification and standard: Stainless round tube in material 1.4301, in 6 m stock lengths and also ground to 240 grit.
- Cutting and project-related picking available
- Advice on dimensions, weight and alternative sections
- Delivery in the Krefeld area, the Rhineland and beyond
| Nominal pipe size (inches) | Outside Ø (mm) | Wall thickness (mm) | Approx. weight (kg/m) |
|---|---|---|---|
| — | 12.0 | 1.5 | 0.39 |
| — | 20.0 | 2.0 | 0.89 |
| ¾″ | 26.9 | 2.0 | 1.24 |
| 1″ | 33.7 | 2.0 | 1.57 |
| — | 38.0 | 2.0 | 1.79 |
| 1¼″ | 42.4 | 2.0 | 2.01 |
| 1½″ | 48.3 | 2.0 | 2.30 |
| 2½″ | 76.1 | 2.0 | 3.68 |
View this version in Stahlshop
| Nominal pipe size (inches) | Outside Ø (mm) | Wall thickness (mm) | Approx. weight (kg/m) |
|---|---|---|---|
| — | 12.0 | 1.5 | 0.39 |
| — | 20.0 | 2.0 | 0.89 |
| ½″ | 21.3 | 2.0 | 0.96 |
| ¾″ | 26.9 | 2.0 | 1.24 |
| 1″ | 33.7 | 2.0 | 1.57 |
| — | 38.0 | 2.0 | 1.79 |
| 1¼″ | 42.4 | 2.0 | 2.01 |
| 1½″ | 48.3 | 2.0 | 2.30 |
| 1½″ | 48.3 | 2.5 | 2.84 |
| 2″ | 60.3 | 2.0 | 2.89 |
View this version in Stahlshop
Inch sizes: Nominal pipe sizes are traditional designations, not direct conversions of the outside diameter. A 1″ pipe has a 33.7 mm outside diameter; one inch as a unit of length equals 25.4 mm.
Metric tubes: “—” means that no nominal pipe size from the inch series used here is assigned to this outside diameter. The millimetre dimensions apply; for example, a 38 mm tube is not a 1½″ pipe (48.3 mm).
Weight information: Theoretical weights per metre calculated from outside diameter and wall thickness using an assumed density of 7.90 kg/dm³. Manufacturing tolerances may cause variations.
Stainless steel round tube required to size?
Send us the dimensions, length, quantity and required processing. We will respond with a suitable solution.
