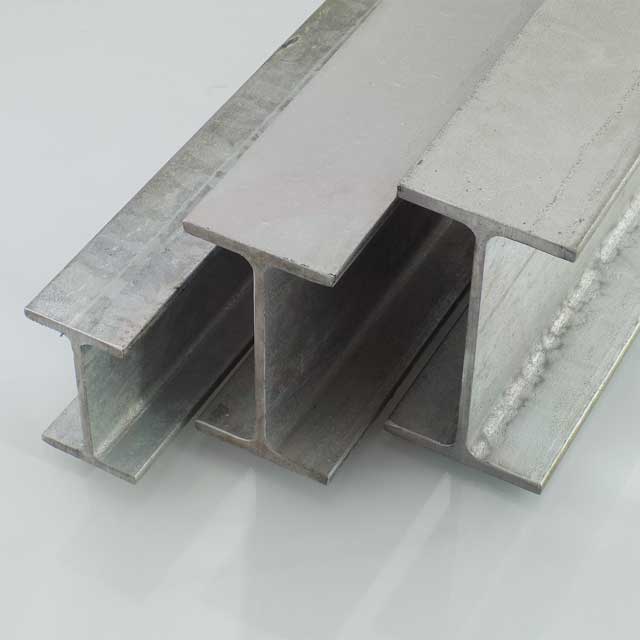

Galvanized IPE beams
Galvanized IPE beams are zinc-coated steel products for robust structures, outdoor use, frames, railings and metalwork. The galvanized surface offers practical corrosion protection and can be combined with cutting, picking and delivery services.
Extended sizes and weights per metre
The overview lists 18 common trade sizes with their theoretical weight per metre. We confirm actual availability, steel grade, stock length and cutting options for your enquiry.
Typical uses for Galvanized IPE beams
Galvanized IPE beams are zinc-coated steel products for robust structures, outdoor use, frames, railings and metalwork. The galvanized surface offers practical corrosion protection and can be combined with cutting, picking and delivery services.
Technical specification and standard: IPE structural sections to EN 10034, material S235JR+AR/+M to EN 10025-2 and hot-dip galvanised to DIN EN 1461.
- Exact-length cutting and project-specific order picking
- Advice on dimensions, weight and alternative sections
- Delivery in the Krefeld area, the Rhineland and beyond
| Designation | Weight |
|---|---|
| IPE 80 | 6.0 kg/m |
| IPE 100 | 8.1 kg/m |
| IPE 120 | 10.4 kg/m |
| IPE 140 | 12.9 kg/m |
| IPE 160 | 15.8 kg/m |
| IPE 180 | 18.8 kg/m |
| Designation | Weight |
|---|---|
| IPE 200 | 22.4 kg/m |
| IPE 220 | 26.2 kg/m |
| IPE 240 | 30.7 kg/m |
| IPE 270 | 36.1 kg/m |
| IPE 300 | 42.2 kg/m |
| IPE 330 | 49.1 kg/m |
| Designation | Weight |
|---|---|
| IPE 360 | 57.1 kg/m |
| IPE 400 | 66.3 kg/m |
| IPE 450 | 77.6 kg/m |
| IPE 500 | 90.7 kg/m |
| IPE 550 | 106.0 kg/m |
| IPE 600 | 122.0 kg/m |
Weight information: These values are the theoretical weights of the ungalvanised base sections; the additional weight of the zinc coating is not included. Manufacturing and standard tolerances can cause deviations. Availability and galvanising are confirmed for each project.
Galvanized IPE beams required to size?
Send us the dimensions, length, quantity and required processing. We will respond with a suitable solution.
