Galvanized tubes

Galvanized threaded tube

Galvanized threaded tube are zinc-coated steel products for robust structures, outdoor use, frames, railings and metalwork. The galvanized surface offers practical corrosion protection and can be combined with cutting, picking and delivery services.

Request material Calculate weight

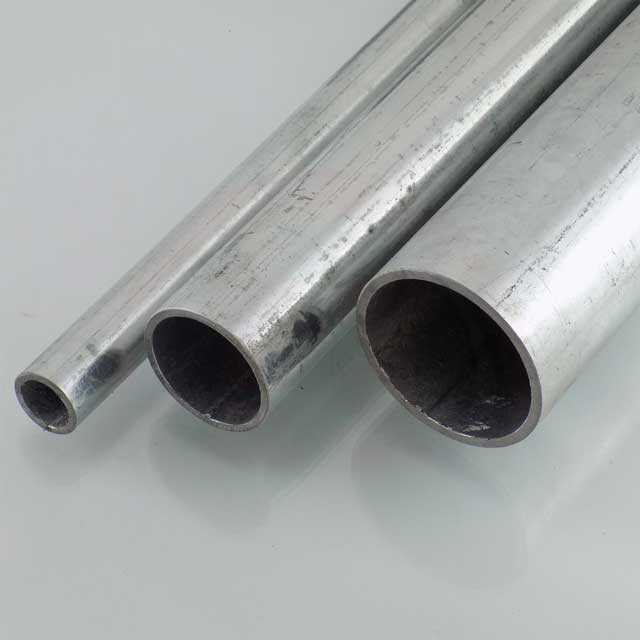

Galvanized threaded tube in the Franz Huisgen warehouse — Galvanized threaded tube: request stock and procurable dimensions for your project.

Dimensions

Dimensions, nominal inch sizes and weights per metre

The tables show sizes from our Stahlshop range: nominal pipe size in inches first, followed by outside diameter, wall thickness and theoretical weight per metre. Availability and cutting are confirmed on enquiry.

Typical uses for Galvanized threaded tube

Technical specification and standard: Welded threaded tube to EN 10255, with or without socket, hot-dip galvanised to DIN EN 1461; the socketless version is listed as longitudinally welded S195T.

Exact-length cutting and project-specific order picking
Advice on dimensions, weight and alternative sections
Delivery in the Krefeld area, the Rhineland and beyond

Galvanized version
Nominal pipe size (inches)	Outside Ø (mm)	Wall thickness (mm)	Approx. weight (kg/m)
⅜″	17.2	2.35	0.86
½″	21.3	2.65	1.22
¾″	26.9	2.65	1.58
1″	33.7	3.25	2.44
1¼″	42.4	3.25	3.14
1½″	48.3	3.25	3.61
2″	60.3	3.65	5.10

View this version in Stahlshop

Inch sizes: Nominal pipe sizes are traditional designations, not direct conversions of the outside diameter. A 1″ pipe has a 33.7 mm outside diameter; one inch as a unit of length equals 25.4 mm.

Weight information: Theoretical weights per metre calculated from outside diameter and wall thickness using an assumed density of 7.85 kg/dm³. Manufacturing tolerances may cause variations. The additional weight of the zinc coating is excluded; wall thickness refers to the steel wall.
