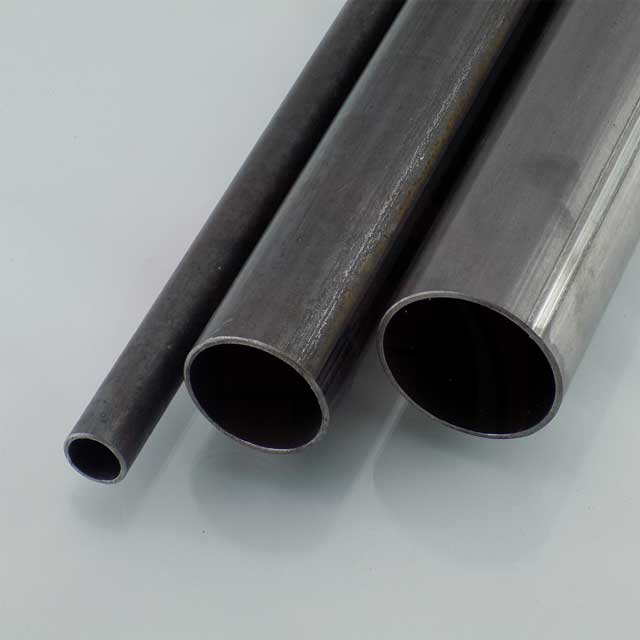

Uncoated handrail tube
Uncoated handrail tube are robust uncoated steel products for steel construction, metalwork, frames, supports and workshop fabrication. Many standard dimensions are available from stock or can be procured, cut to length and delivered for your project.
Dimensions, nominal inch sizes and weights per metre
The tables show sizes from our Stahlshop range: nominal pipe size in inches first, followed by outside diameter, wall thickness and theoretical weight per metre. Availability and cutting are confirmed on enquiry.
Typical uses for Uncoated handrail tube
Uncoated handrail tube are robust uncoated steel products for steel construction, metalwork, frames, supports and workshop fabrication. Many standard dimensions are available from stock or can be procured, cut to length and delivered for your project.
Technical specification and standard: Welded handrail tube to EN 10219; stock lengths according to the product master data: 6–6.15 m.
- Exact-length cutting and project-specific order picking
- Advice on dimensions, weight and alternative sections
- Delivery in the Krefeld area, the Rhineland and beyond
| Nominal pipe size (inches) | Outside Ø (mm) | Wall thickness (mm) | Approx. weight (kg/m) |
|---|---|---|---|
| ½″ | 21.3 | 1.75 | 0.84 |
| ¾″ | 26.9 | 1.75 | 1.09 |
| 1″ | 33.7 | 2.0 | 1.56 |
| 1¼″ | 42.4 | 2.0 | 1.99 |
| 1½″ | 48.3 | 2.0 | 2.28 |
| 2″ | 60.3 | 2.0 | 2.88 |
View this version in Stahlshop
Inch sizes: Nominal pipe sizes are traditional designations, not direct conversions of the outside diameter. A 1″ pipe has a 33.7 mm outside diameter; one inch as a unit of length equals 25.4 mm.
Weight information: Theoretical weights per metre calculated from outside diameter and wall thickness using an assumed density of 7.85 kg/dm³. Manufacturing tolerances may cause variations.
Uncoated handrail tube required to size?
Send us the dimensions, length, quantity and required processing. We will respond with a suitable solution.
