RP 144closed body with a one-sided top flange
Stop profiles
Uncoated RP stop profiles
RP tubes are welded special sections with an integral stop. They provide defined contact surfaces for doors, gates, windows, façades and metalwork structures.
RP Standard
Profile series and typical versions
RP stop profiles are available in numerous cross-sections and installation depths. The selection shows typical standard profiles; we confirm geometry, finish and actual availability for each project.
RP 150closed body with a two-sided top flange
RP 169open opposed stop profile
RP 141closed body with stop and upright rib

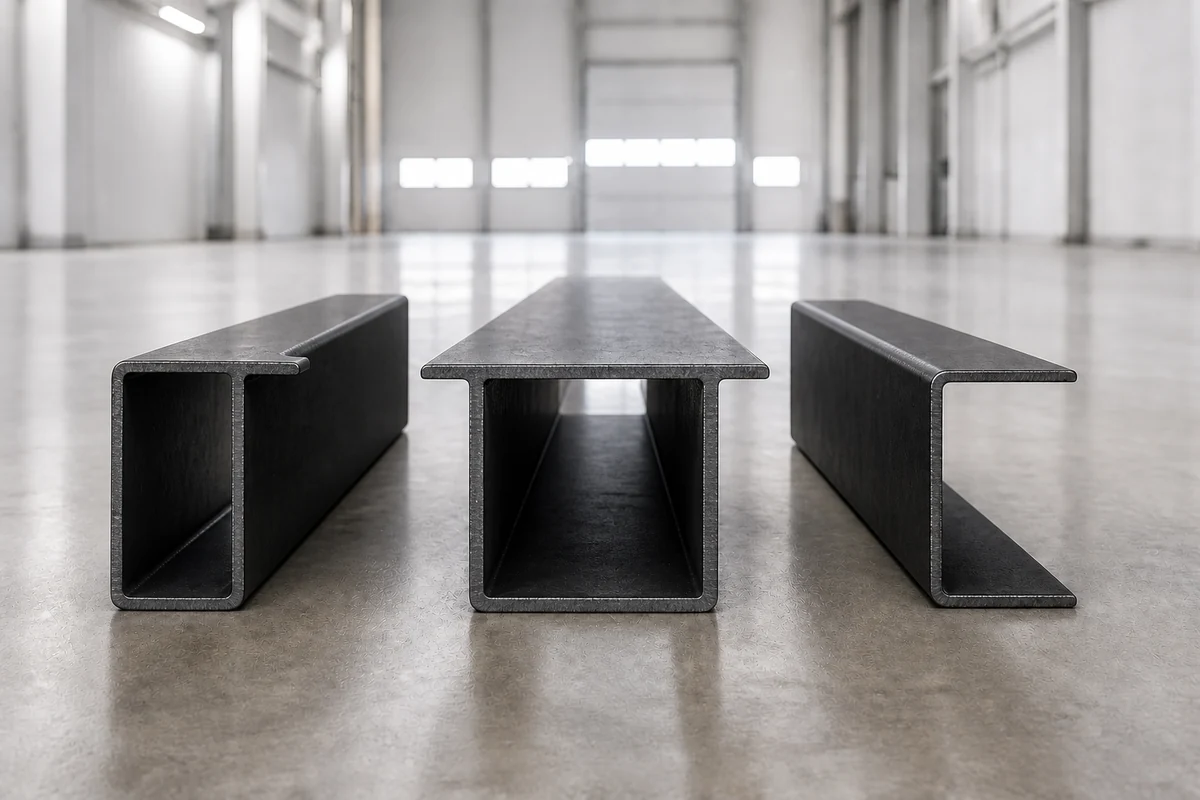

One profile – many stop solutions
Integral stop faces reduce the need for additional angles and attached parts. RP tubes are particularly suitable for frames, infill panels, glazing and flush or bolted connections.
Technical classification: Welded steel stop profiles, typically S235JR, in installation depths from 34 to 80 mm and stock lengths around 6 m. Further geometries and special lengths on request.
- Combinable L, T, Z and S geometries
- For doors, gates, windows, façades and balustrades
- Match profile number and counterpart to the project
RP 34–50
Selection of common RP profiles
| Profile | Depth | Weight |
|---|---|---|
| RP 103 | 34 mm | 3.43 kg/m |
| RP 104 | 34 mm | 3.12 kg/m |
| RP 106 | 34 mm | 2.49 kg/m |
| RP 112 | 34 mm | 3.52 kg/m |
| RP 114 | 34 mm | 3.21 kg/m |
| RP 144 | 34 mm | 2.02 kg/m |
| RP 150 | 34 mm | 3.59 kg/m |
| Profile | Depth | Weight |
|---|---|---|
| RP 1008 | 40 mm | 2.84 kg/m |
| RP 152 | 40 mm | 3.30 kg/m |
| RP 185 | 40 mm | 2.67 kg/m |
| RP 1049 | 40 mm | 3.47 kg/m |
| RP 1087 | 40 mm | 3.78 kg/m |
| RP 1162 | 40 mm | 3.30 kg/m |
| Profile | Depth | Weight |
|---|---|---|
| RP 193 | 50 mm | 3.43 kg/m |
| RP 197 | 50 mm | 2.75 kg/m |
| RP 1070 | 50 mm | 4.06 kg/m |
| RP 1072 | 50 mm | 3.37 kg/m |
| RP 1688 | 50 mm | 4.84 kg/m |
Weight information: Theoretical weights for the standard version. Manufacturing and standard tolerances can cause deviations; further RP numbers are available for specific projects.
Enquiry
Start enquiryNeed uncoated RP stop profiles?
Tell us the RP number or required cross-section, length, quantity, surface finish and processing. We will check the appropriate available version.
