steel tubes

Uncoated threaded tube

Uncoated threaded tube are robust uncoated steel products for steel construction, metalwork, frames, supports and workshop fabrication. Many standard dimensions are available from stock or can be procured, cut to length and delivered for your project.

Request material Calculate weight

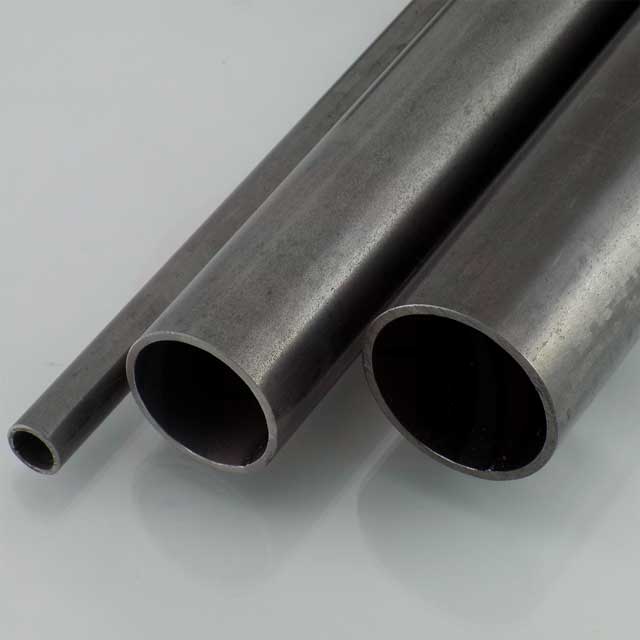

Uncoated threaded tube in the Franz Huisgen warehouse — Uncoated threaded tube: request stock and procurable dimensions for your project.

Dimensions

Dimensions, nominal inch sizes and weights per metre

The tables show sizes from our Stahlshop range: nominal pipe size in inches first, followed by outside diameter, wall thickness and theoretical weight per metre. Availability and cutting are confirmed on enquiry.

Typical uses for Uncoated threaded tube

Technical specification and standard: Medium and heavy threaded tubes to DIN EN 10255, with or without socket; medium-weight version according to the product master data in stock lengths of 6–6.2 m.

Exact-length cutting and project-specific order picking
Advice on dimensions, weight and alternative sections
Delivery in the Krefeld area, the Rhineland and beyond

Medium-weight series
Nominal pipe size (inches)	Outside Ø (mm)	Wall thickness (mm)	Approx. weight (kg/m)
⅜″	17.2	2.35	0.86
½″	21.3	2.65	1.22
¾″	26.9	2.65	1.58
1″	33.7	3.25	2.44
1¼″	42.4	3.25	3.14
1½″	48.3	3.25	3.61
2″	60.3	3.65	5.10

View this version in Stahlshop

Inch sizes: Nominal pipe sizes are traditional designations, not direct conversions of the outside diameter. A 1″ pipe has a 33.7 mm outside diameter; one inch as a unit of length equals 25.4 mm.

Weight information: Theoretical weights per metre calculated from outside diameter and wall thickness using an assumed density of 7.85 kg/dm³. Manufacturing tolerances may cause variations.
