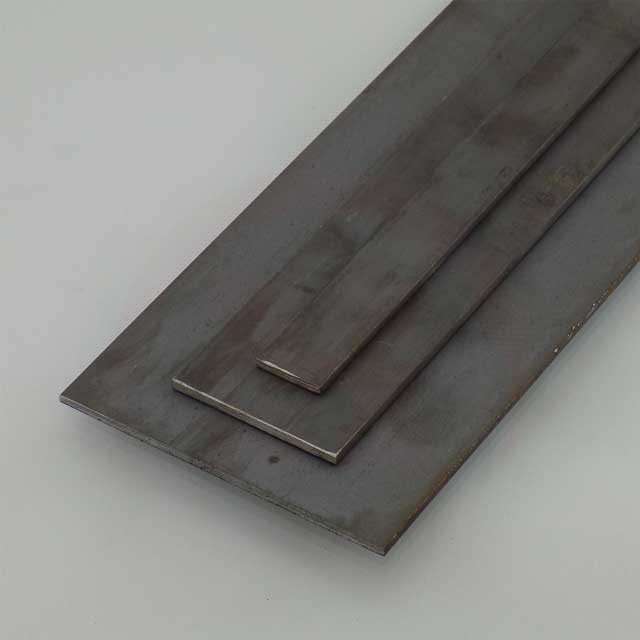

Uncoated strip steel
Strip steel covers dimensions below 5 mm thickness. At widths from 110 up to and including 150 mm, thicknesses of 5 and 6 mm are also classified as strip steel. It is suitable for straps, edges, brackets and flexible workshop solutions.
Common sizes and weights per metre
The table shows typical trade dimensions for guidance. Actual stock availability, standard, surface finish and cutting are clarified to match your enquiry.
Typical uses for Uncoated strip steel
Strip steel covers dimensions below 5 mm thickness. At widths from 110 up to and including 150 mm, thicknesses of 5 and 6 mm are also classified as strip steel. It is suitable for straps, edges, brackets and flexible workshop solutions.
Technical specification and standard: Strip steel in S235JR+AR and S355J2 to EN 10025; stock lengths according to the product master data: 6–6.3 m.
- Exact-length cutting and project-specific order picking
- Advice on dimensions, weight and alternative sections
- Delivery in the Krefeld area, the Rhineland and beyond
| Dimension | Weight / guide |
|---|---|
| 20 × 3 mm | 0.47 kg/m |
| 25 × 3 mm | 0.59 kg/m |
| 30 × 4 mm | 0.94 kg/m |
| 40 × 4 mm | 1.26 kg/m |
| 80 × 4 mm | 2.51 kg/m |
| 100 × 4 mm | 3.14 kg/m |
| 110 × 5 mm | 4.32 kg/m |
| 120 × 6 mm | 5.65 kg/m |
| 150 × 6 mm | 7.07 kg/m |
Uncoated strip steel required to size?
Send us the dimensions, length, quantity and required processing. We will respond with a suitable solution.
