RP 144closed body with a one-sided top flange
Stop profiles

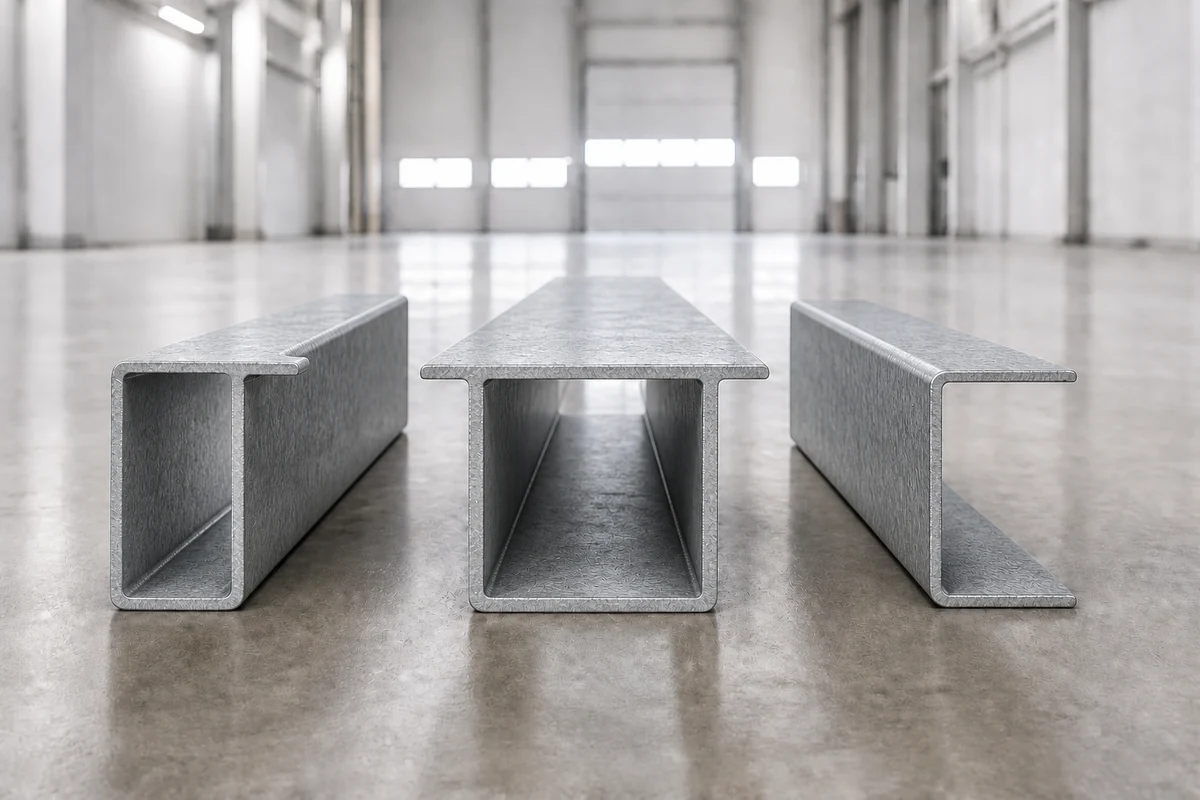

Galvanized RP stop profiles
Galvanized RP tubes combine the versatile geometry of a stop profile with additional corrosion protection for exposed structures.
RP Standard
Profile series and typical versions
RP stop profiles are available in numerous cross-sections and installation depths. The selection shows typical standard profiles; we confirm geometry, finish and actual availability for each project.
RP 150closed body with a two-sided top flange
RP 169open opposed stop profile
RP 141closed body with stop and upright rib
One profile – many stop solutions
The zinc finish provides additional protection. Depending on the profile and application, pre-galvanized or post-fabrication hot-dip galvanized versions may be possible; the exact finish is confirmed with our quotation.
Technical classification: Welded steel stop profiles with a galvanized finish. Depending on the profile, pre-galvanized or post-fabrication hot-dip galvanized surfaces may be available; specification and availability are confirmed per project.
- Combinable L, T, Z and S geometries
- For doors, gates, windows, façades and balustrades
- Match profile number and counterpart to the project
RP 34–50
Selection of common RP profiles
| Profile | Depth | Weight |
|---|---|---|
| RP 103 | 34 mm | 3.43 kg/m |
| RP 104 | 34 mm | 3.12 kg/m |
| RP 106 | 34 mm | 2.49 kg/m |
| RP 112 | 34 mm | 3.52 kg/m |
| RP 114 | 34 mm | 3.21 kg/m |
| RP 144 | 34 mm | 2.02 kg/m |
| RP 150 | 34 mm | 3.59 kg/m |
| Profile | Depth | Weight |
|---|---|---|
| RP 1008 | 40 mm | 2.84 kg/m |
| RP 152 | 40 mm | 3.30 kg/m |
| RP 185 | 40 mm | 2.67 kg/m |
| RP 1049 | 40 mm | 3.47 kg/m |
| RP 1087 | 40 mm | 3.78 kg/m |
| RP 1162 | 40 mm | 3.30 kg/m |
| Profile | Depth | Weight |
|---|---|---|
| RP 193 | 50 mm | 3.43 kg/m |
| RP 197 | 50 mm | 2.75 kg/m |
| RP 1070 | 50 mm | 4.06 kg/m |
| RP 1072 | 50 mm | 3.37 kg/m |
| RP 1688 | 50 mm | 4.84 kg/m |
Weight information: Values refer to the base profile. The zinc coating may slightly change the actual weight per metre; further RP numbers are available for specific projects.
Enquiry
Start enquiryNeed galvanized RP stop profiles?
Tell us the RP number or required cross-section, length, quantity, surface finish and processing. We will check the appropriate available version.
